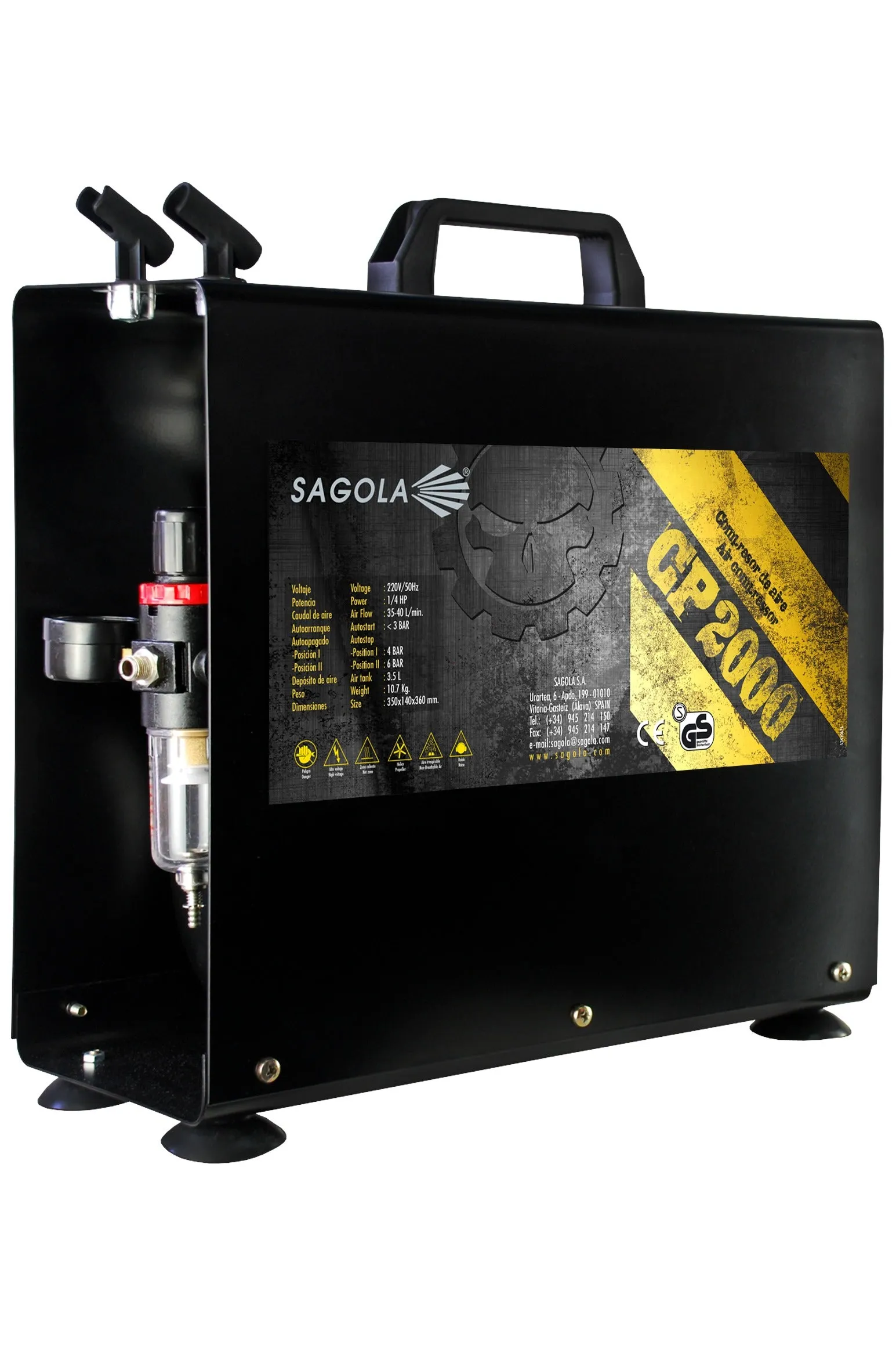

Sagola CP 2000 Compressor
Manufacturer: Sagola
Part #: PT10620802
Description: The Sagola CP 2000 Compressor includes:
- Twin cylinder piston compressor for use with the XTech range of airbrushes.
- Compact, powerful, and reliable.
- Minimum maintenance.
- Ultra silent. Minimum noise level.
- Includes filter and air outlet regulator.
- Automatic stop switch.
Literature:
Specifications:
| Power | 1/4 HP |
| Air Flow | 35-40 L/min |
| Auto Start at less than 3 bar | Yes |
| Auto power off at 4 bar | Yes |
| Auto power off at 6 bar | No |
| Air outlet | 1/8" male |
| Air tank | 3.5 L |
| Weight | 10.7 Kg |
| Dimensions | 310x140x360 mm |
| Sound level | 47 Db |
Spare Parts:
| Ref. No. | Part No. | Description |
| 01/1 | Stator, Rotor & Bearings Kit; 220V/50Hz | |
| 01/2 | Stator, Rotor & Bearings Kit; 110V/60Hz | |
| 02 | Rotor Bearing | |
| 03/1 | Solenid Valve; 220V/50Hz | |
| 03/2 | Solenid Valve; 110V/60Hz | |
| 04 | Power Switch | |
| 05 | Cylinder & Compression Ring Kit | |
| 09 | Rod Set | |
| 10 | Head Kit | |
| 11 | Backstop & Pipe Kit | |
| 12 | Handle & Screw Kit | |
| 13 | Cover Head Valve Parts Kit | |
| 14 | Cover Head Kit | |
| 15 | Condensor (x2) | |
| 16 | Front Motor Cover | |
| 17 | Motor Cover | |
| 18/1 | Pressure Switch; 220V | |
| 18/2 | Pressure Switch; 110V | |
| 19 | Safety Valve | |
| 20 | PT52350403 | N/A |
| 21 | Protective Cover & Base | |
| 23 | Air Filter Regulator Kit | |
| 24 | Analogue Pressure Gauge | |
| 25 | Motor Drain Valve | |
| 26 | Support Legs (x4) | |
| 27 | Air Brush Support Kit | |
| 28 | "T" Tank Connection |
